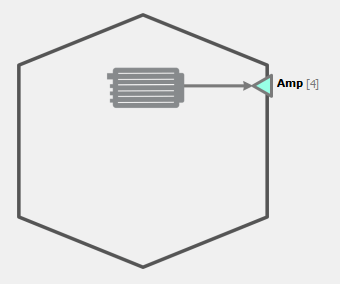

|RA Amplifier Block Diagram|
The RA Hal reads data from a legacy optic port on the front panel of the RZ / RX device. Supported amplifiers include the RA4PA, RA16PA, RA8GA, and Medusa4Z.
RA Amplifier Options
|RA Amp Options|
Select the number of channels and apply an optional scale factor to the incoming signals. If AC Coupled is selected, a 0.4 Hz highpass filter is applied to the incoming signals.
If using an RA8GA, the voltage range must also be set to match the voltage selected on the device front panel.
