Integer Math

The Integer Math components provide mathematical functions for integer data, allowing bitwise mathematical operations.

This group includes the following components:

• FromBits
• iAbsVal
• iAnd
• iBitShift
• iCompare
• iLimit
• iNot
• iOr
• iScaleAdd
• iSign
• iXor
• ToBits

This group also includes the following components, if RPvdsEx Device Setup is configured for a high performance device, such as the RXn or RZn:

• MCiAnd
• MCiOr
• MCiShift

FromBits

Description:

Converts bit format to an integer value. See ToBits.

Name	Description	Data Type
Inputs	Input	Logic
Output	Integer calculated from Logical Inputs	Integer
Rst	Resets output to zero	Logic

Equation:

I₁ = L_0-7 Bit-mask

Example(s):

B₀=1, B₁=1, B₂=1, B₃=0, B₄=0, B₅=0, I₁=7

B₀=1, B₁=0, B₂=0, B₃=0, B₄=1, B₅=1, I₁=49

B₀=1, B₁=1, B₂=1, B₃=1, B₄=1, B₅=1, I₁=63

iAbsVal

Description:

Computes the absolute value of the signal.

Name	Description	Data Type
Input	Input	Integer
Output	Absolute value of Input	Integer

Equation:

Io = |I_i|

Example(s):

AbsVal (-2) = 2

AbsVal (2) = 2

iAnd

Description:

Bitwise AND function. Bitwise AND of integer input and N.

Name	Description	Data Type
Input	Input	Integer
Output	Bitwise AND function	Integer
N	Decimal value for doing Bitwise conversion	Integer

Equation:

I_o = I_i AND N₁

Example(s):

7(0000 0111) AND 3 (0000 0011)= 3

7(0000 0111) AND 9 (0000 1001)= 1

iBitShift

Description:

Bit shifts input by N bits. Positive N bit shifts to the left negative shifts to the right.

Name	Description	Data Type
Input	Input	Integer
Output	Input shifted by N bits	Integer
N	Decimal value for doing Bit shift	Integer

Equation:

I_o = I_i * 2^N₁

Example(s):

N=1; iBitShift (20) = 40

iCompare

Description:

Compares input to K using specified Test and reports TRUE or FALSE as logic High or Low respectively. Test can be EQ: Equal; NE: Not Equal; GT: Greater Than; LT: Less Than; GE: Greater than or Equal to; LE: Less than or equal to. Can be thought of as an If... statement.

Name	Description	Data Type
Input	Input	Integer
Output	One if test is true 0 if test is false	Logic
K	Test value	Integer
Test	Compare type: EQ: Equal; NE: Not Equal; GT: Greater Than; LT: Less Than; GE: Greater than or Equal to; LE: Less than or equal to	Static

Equation:

I_o = iCompare (I_i Test K)

Example(s):

K = 20; Test Eq; When Ii = 20, I_o =1, otherwise I_o =0;

K=20; Test GT; When Ii > 20, I_o =1; otherwise I_o =0;

iLimit

Description:

Limits the signal to the Maximum and Minimum levels specified. If the input signal is greater than the Max value then the signal out is the Max value. If the input signal is less than the Min value then the signal out is the Min value. If the input signal is between the Min and Max values it is passed through as the signal output without change.

Important!: If Max is defined as a value less than the defined Min value, the output will always be the defined Min, regardless of the input value.

Name	Description	Data Type
Input	Input	Integer
Output	Value no less than Min and no greater than Max	Integer
Max	Maximum input value	Integer
Min	Minimum input value	Integer

Equation:

If F_i > D₁ then F_o = D₁

Else If D₂ <= F_i <= D₁ then F_o = F_i

Else If F_i < D₂ then F_o = D₂

iNot

Description:

Inverts bits of integer value.

Name	Description	Data Type
Input	Input	Integer
Output	Bit-Inverted value of Input	Integer

Equation:

I_o = NOT (I_i)

Example(s):

NOT (0x000F) = 0xFFF0

NOT(7)=-8

iOr

Description:

Bitwise OR function.

Name	Description	Data Type
Input	Input	Integer
Output	Bitwise OR function	Integer
N	Decimal value for doing Bitwise OR	Integer

Equation:

I_o = I_i OR N₁

Example(s):

7(0000 0111) OR 3 (0000 0011)= 7

7(0000 0111) OR 9 (0000 1001)= 15

iScaleAdd

Description:

Multiply signal by scale factor and add shift factor. The SF parameter can be used to apply a simple scalar, or modulate a signal. The Shift parameter can be used to place a DC shift on a signal or add two signals together.

Name	Description	Data Type
Input	Input	Integer
Output	Scaled plus add value of Input	Integer
SF	Scale factor (multiply)	Integer
Shift	DC offset adds a value after SF	Integer

Equation:

Output = (Input* SF) + Shift

iSign

Description:

This component determines the sign of the input.

Name	Description	Data Type
Input	Input	Integer
Output	Sign of Input value (-1,0,1)	Integer

Equation:

If I_i < 0 then I_o = -1

Else If I_i = 0 then I_o = 0

Else If I_i > 0 then I_o = 1

iXor

Description:

Output is changed based on the bit-form of the parameter value using an exclusive OR bit mask. Exclusive OR only includes those bit-values that have a single 1. See the examples below.

Name	Description	Data Type
Input	Input	Integer
Output	Bitwise XOR function	Integer
N	Decimal value for doing Bitwise OR	Integer

Equation:

I_o = I_i IXOR (N_p )

Example(s):

7(0000 0111) IXOR 1 (0000 0001) = 6

7(0000 0111) IXOR 7(0000 0111) = 0

14(0000 1110) IXOR 7 (0000 0111) = 9

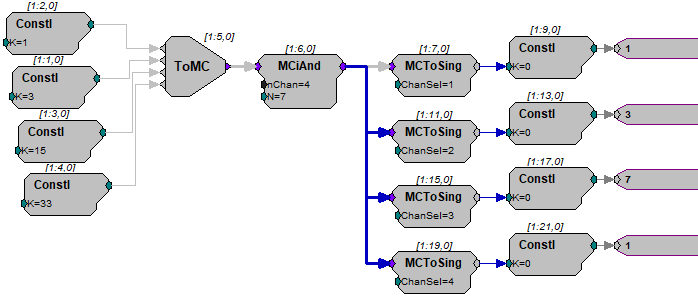

MCiAnd

Description:

Multi-channel bitwise AND function. Bitwise AND of integer input and N.

Name	Description	Data Type
Input	Multi-channel Input	Integer
Output	Bitwise AND function	Integer
N	Decimal value for doing Bitwise conversion	Integer

Equation:

I_o = I_i AND N₁

Example(s):

7(0000 0111) AND 3 (0000 0011)= 3

7(0000 0111) AND 9 (0000 1001)= 1

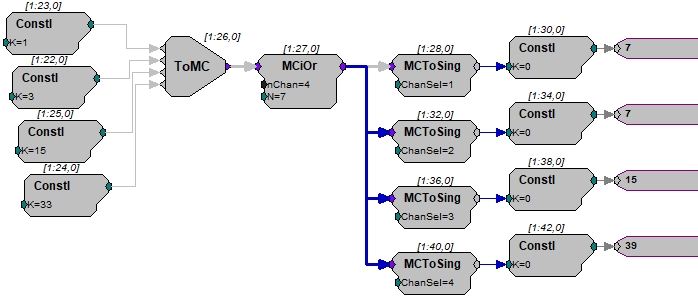

MCiOr

Description:

Multi-channel bitwise OR function.

Name	Description	Data Type
Input	Multi-channel Input	Integer
Output	Bitwise OR function	Integer
N	Decimal value for doing Bitwise OR	Integer

Equation:

I_o = I_i OR N₁

Example(s):

7(0000 0111) OR 3 (0000 0011)= 7

7(0000 0111) OR 9 (0000 1001)= 15

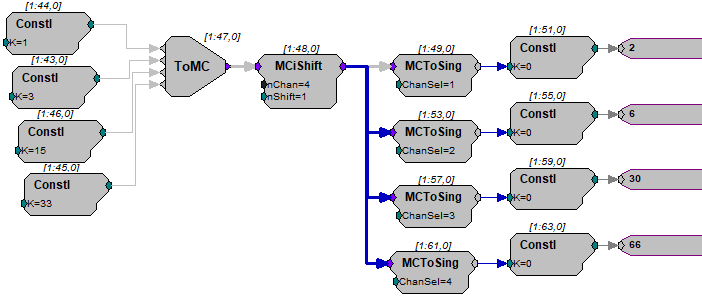

MCiShift

Description:

Bit shifts the multi-channel input by N bits. Positive N bit shifts to the left negative shifts to the right.

Name	Description	Data Type
Input	Multi-channel Input	Integer
Output	Inputs shifted N bits	Integer
N	Decimal value for doing Bit shift	Integer

Equation:

I_o = I₁ * 2^N₁

Example(s):

N=1; MCiShift (20) = 40

ToBits

-

Description:

Converts the first 6 bits of an Integer to a series of logical outputs. Values greater than 63 and less than 0 may give unexpected results. See FromBits.

Note:

The b0 output is a primary output on the ToBits component. The b1 through b5 outputs are secondary. This may cause a problem when connecting b1 through b5 to logic inputs requiring a primary input (e.g. And, Or etc.). Use a ConstL between the two components to solve this problem.

Name	Description	Data Type
Input	Input	Integer
Outputs	Logical values from Integer input	Integer
Rst	Resets outputs to zero	Logic

Equation:

I_o = I_i Bit-mask

Example(s):

I_i=7: B₀=1, B₁=1, B₂=1, B₃=0, B₄=0, B₅=0

I_i=2001: B₀=1, B₁=0, B₂=0, B₃=0, B₄=1, B₅=0

I_i=-1: B₀=1, B₁=1, B₂=1, B₃=1, B₄=1, B₅=1
