ES1 & EC1 Electrostatic Speakers

Used in 355 published studies →

TDT Electrostatic Speakers are designed specifically for ultrasonic signal production. Our patented electrostatic design features a thin, flexible membrane with an extremely low moving mass. Unlike conventional speakers, our Electrostatics distribute the driving signal homogeneously over the surface of the membrane. Feel confident in your research when exceeding an ultrasonic range of 110 kHz.

Choose between the ES1 – Free Field Electrostatic Speaker and the EC1 – Coupler Model Electrostatic Speaker.

Research Uses

Resources

Publications

  • ABR & DPOAE
  • Bioacoustics
  • Bat research

355 published studies used the ES1 & EC1. The newest:

bioRxiv · Sep 2026

Mice detect and discriminate temporal patterns of mesoscale optogenetic cortical stimulation (opens in a new tab)

Gabrielle Stephens, Nikolas A. Francis

Abstract

Optogenetic stimulation is widely used to establish causal links between neural activity, behavior, and sensory perception, yet animals may also perceive the neural stimulation itself, a phenomenon termed “optoception.” We hypothesized that cortical optogenetic stimulation would generate an artificial percept that could be distinguished from externally evoked sensations and characterized psychometrically in an operant task. We tested this hypothesis using mesoscale cortical photostimulation delivered by a 3 mm, 459 nm LED implanted over auditory cortex. Four mice expressing Channelrhodopsin-2 (ChR2) in excitatory neurons learned a head-fixed go/no-go task in which 20 Hz cortical photostimulation served as the target. ChR2-positive mice detected cortical photostimulation relative to LED-off catch trials, distinguished it from both an external LED matched in wavelength and pulse rate and from an acoustic noise matched in amplitude-modulation rate, and discriminated between 20- and 10-Hz cortical photostimulation. Reducing implanted-LED optical power initially lowered rate-discrimination sensitivity, which then increased across training sessions, demonstrating perceptual learning. In two mice tested with 11 randomly interleaved rates spanning 10-20 Hz, lick probability followed a saturating rate-dependent function. Two ChR2-negative littermates failed to acquire photostimulation-locked behavioral responding. Together, these findings show that mesoscale cortical optogenetic stimulation generates a graded, learnable artificial percept whose behavioral readout depends on photostimulation rate and optical power. This single-LED preparation provides a cost-efficient and wavelength-extensible platform for psychometric analysis of optoception. SIGNIFICANCE STATEMENT Optogenetic stimulation can alter sensory processing, but the neural perturbation itself may also become a perceptual cue. We show that mice detect mesoscale cortical photostimulation delivered by a 3 mm implanted LED, distinguish it from matched external light and sound, and discriminate differences in photostimulation rate. When implanted-LED optical power was reduced, discrimination sensitivity initially declined and then increased across training sessions, revealing perceptual learning of optoception. Thus, mesoscale cortical photostimulation generates a graded internal signal whose behavioral readout depends on stimulation rate, optical power, and experience. A single implanted LED provides a cost- efficient and wavelength-extensible assay for measuring optogenetic perception.

Journal of Neurophysiology · Sep 2026

Multiplexed encoding of frequency-modulated sweep features in the inferior colliculus (opens in a new tab)

Audrey C. Drotos, Sarah Z. Wajdi, Michael Malina, … Michael T. Roberts

Abstract

The inferior colliculus (IC) is a critical auditory processing center. IC neurons exhibit diverse responses to different sound features, but how IC neurons encode co-varying sound features—such as both the direction and intensity of a frequency-modulated (FM) sweep—is poorly understood. Here, we show that individual IC neurons and neuronal populations multiplex information about FM sweep direction, frequency range, and speed through distinct coding strategies, including both spike timing patterns and overall firing rate.

Experimental & Molecular Medicine · Aug 2026

Acbd7 is essential for preserving hair cell-mediated auditory and vestibular function (opens in a new tab)

Mingxuan Wu, Gaogan Jia, Yanyan Jia, … Wenyan Li

Abstract

Understanding the molecular basis of hair cell function is essential for elucidating inner ear physiology and developing therapies for auditory–vestibular disorders. Here, we identify acyl-CoA binding domain-containing 7 ( Acbd7 ) as a hair cell-specific gene critical for sensory maintenance. Single-cell transcriptomics of mouse cochlear organoids revealed Acbd7 as a top hair cell-enriched transcript, with its spatiotemporal expression confirmed from embryonic development through adulthood in both auditory and vestibular hair cells. Acbd7 ‑deficient mice exhibited pronounced hair cell degeneration, characterized by synaptic defects and diminished calcium currents in inner hair cells and loss of outer hair cells. Transcriptomic and proteomic analyses linked Acbd7 to the regulation of Ca 2+ signaling and fatty acid metabolism pathways. Our findings establish Acbd7 as a critical regulator of Ca 2+ homeostasis and functional integrity in hair cells, thereby elucidating a key mechanism by which a fatty acid metabolism factor sustains hair cell function and providing potential therapeutic targets for inner ear disorders.

Read all 355 papers →

How to cite the ES1 & EC1

Name the model in your Methods so readers can find the equipment you used, for example:

ES1 & EC1 Electrostatic Speakers (Tucker-Davis Technologies, Alachua, FL, USA)

Request this product

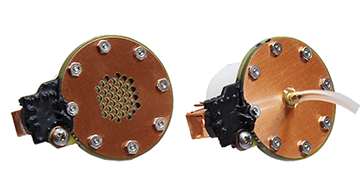

Light Weight, User Friendly Design

ES1 & EC1 Electrostatic Speakers

Available with or without a coupler, both models are easy to position and are particularly well suited for studies with small animals that have hearing in the ultrasonic range. The speakers are driven by the ED1 Electrostatic Speaker Driver, a broadband electrostatic driver that produces incredibly flat frequency responses reaching far into the ultrasonic range.

Built for TDT Electrostatic Speakers

ED1 Speaker Driver

Two input BNCs accept signals up to 10 V peak. The front panel gain control can be used to control the overall signal level of both channels from 0 to -27 dB in 3 dB steps. Output is via two 4-pin, mini-DIN connectors, which carry both bias and signal voltages. This driver is designed to work exclusively with TDT Electrostatic Speakers and can drive two speakers for stereo operation.
