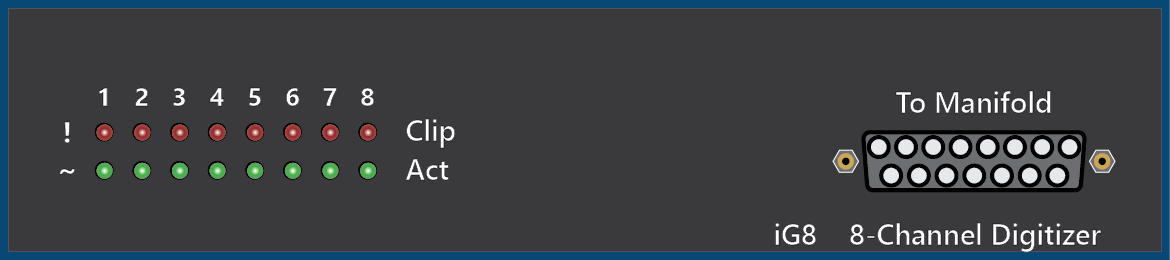

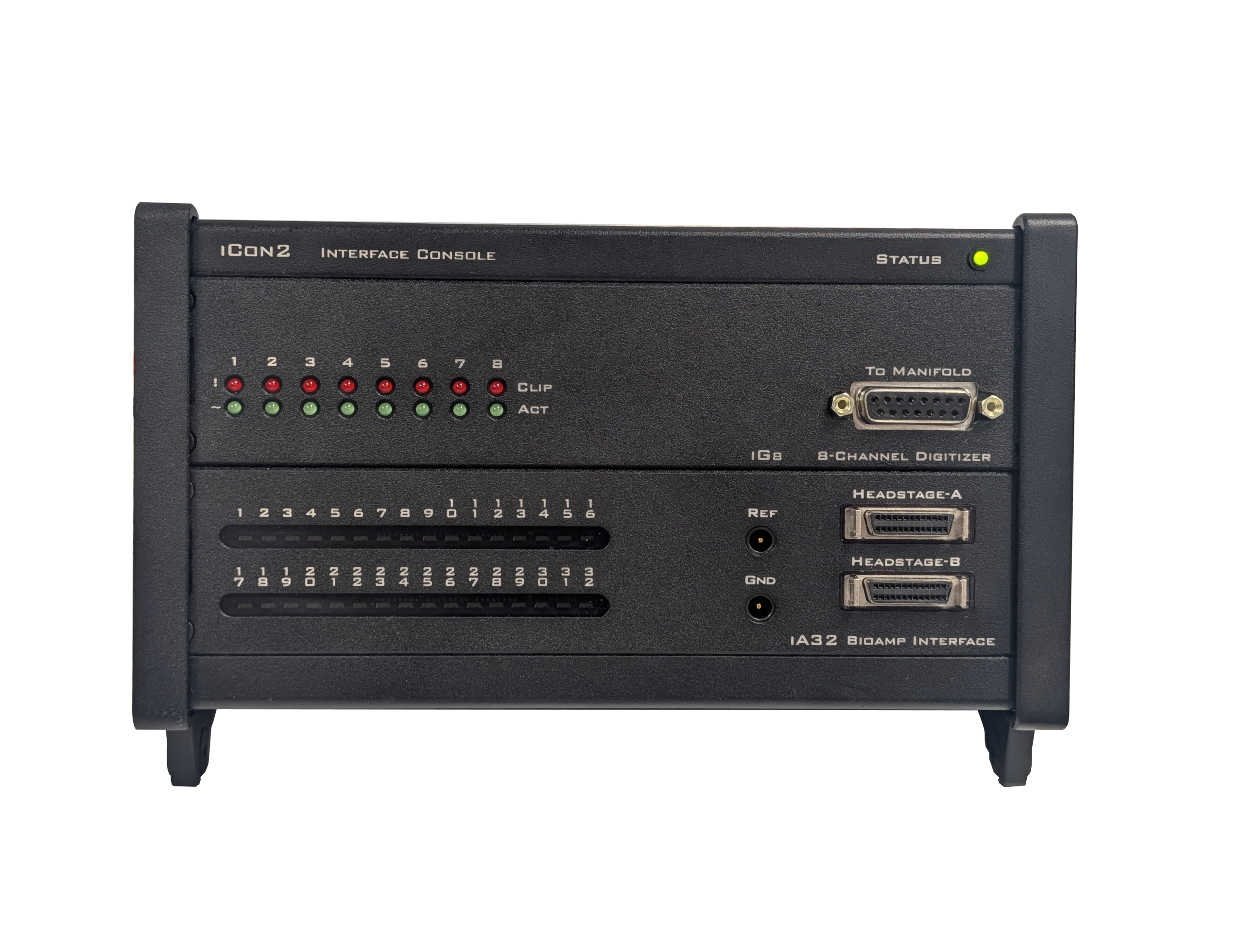

iG8 and iG16 – Analog Signal Digitizers
The iG8 and iG16 modules are the simplest and best way to add analog signal input capture into your iCon system. The eight-channel module has low-noise and several connection options for an easy set up and reliable recordings.
The iG16 is a higher channel count version of the iG8. Both modules makes analog signal capture easy with intuitive BNC or terminal breakout connections and high-quality signal digitization.

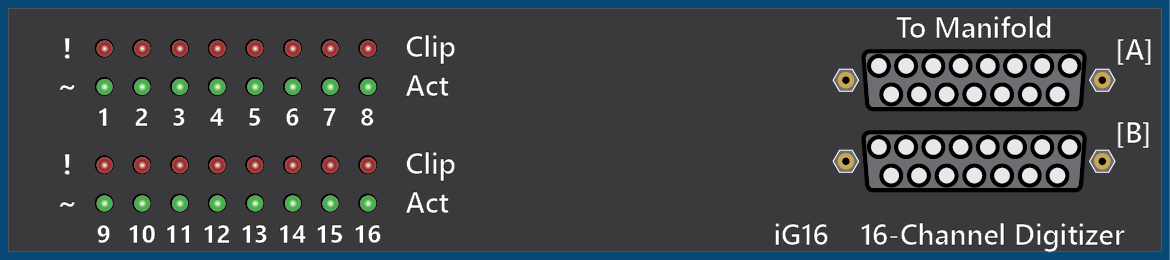

Pictogram of iG16 Analog Signal Digitizer
Research Uses
Product Specs
Resources
Publications
- Eye tracking
- Respiration capture
- External amplifier input
- Temperature Sensors
- Accelerometers
- 100 dB signal-to-noise
- +/- 5 Volt input range

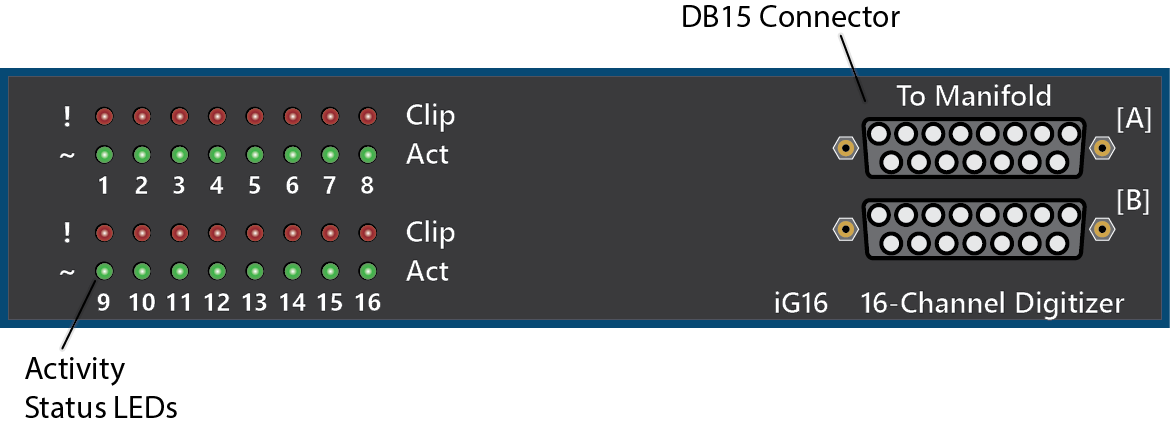

- LED indicators to visually show input activity and channel clipping
- 10 – 20 uV noise floor
- 8- or 16-channel analog signal input

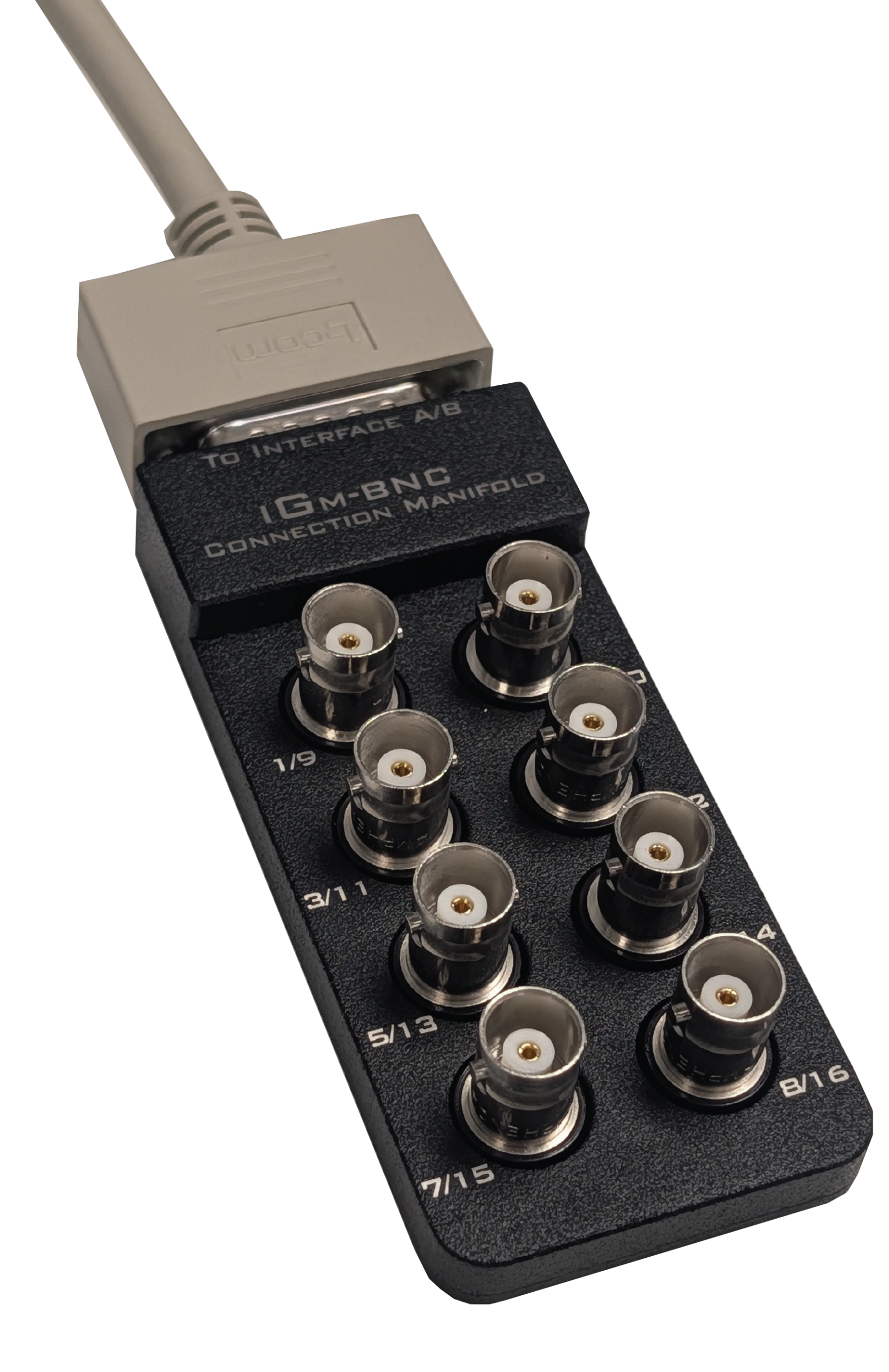

- BNC or wire terminal breakout manifold for easy connectivity
TDT systems have been used in more than 6,000 published studies.
Published with the iG8 and iG16? Send us the DOI and we will add your paper.
How to cite the iG8 and iG16
Name the model in your Methods so readers can find the equipment you used, for example:
iG8 and iG16 Analog Signal Digitizers on the iCon platform, with Synapse software (Tucker-Davis Technologies, Alachua, FL, USA)
