IAn – BioAmp Modules

The iA4, iA8, iA16, and iA32 modules are TDT’s premier electrophysiology recording amplifiers made for the iCon platform. Combine these with other iCon modules to make a system perfectly tuned for your specific research needs!

The iAn family of bioamps are designed for a wide range of neurophysiology applications to make it easy for you to implement the specific experimental setup that you want. The iA4 is a four-channel count device made for applications involving low impedance electrodes such as EEG and EMG recordings – perfect for sleep and epilepsy studies. The iA8, iA16, and iA32 devices offer researchers channel count options for low or high impedance recording applications that involve any TDT analog headstage – these are a great option when your research requires DC recordings or when there are large stimulus artifacts.

We are certain that you will be impressed with these state-of-the-art amplifiers. Contact us today to discuss how the iAn family of recording modules can help excel your research!





Resources

Publications

Knowledge Hub iAn BioAmp

TDT systems have been used in more than 6,000 published studies.

Browse all publications →

Published with the IAn BioAmp Modules? Send us the DOI and we will add your paper.

How to cite the IAn BioAmp Modules

Name the model in your Methods so readers can find the equipment you used, for example:

IAn BioAmp Modules on the iCon platform, with Synapse software (Tucker-Davis Technologies, Alachua, FL, USA)

Request this product

iA8, iA16, and iA32

The iA8, iA16, and iA32 modules are high quality 8, 16 or 32 channel recording amplifier options designed for single-subject recordings that use TDT analog headstages such as our ZIF-Clip® and Omnetics connectors. Capture 8 to 16 channels of neurophysiology signals like EEG, EMG, LFPs, MUAs, or Single-Units up to 50 kHz, or 32 channels up to 25 kHz. The amplifiers have a large input range to handle DC signals and avoid saturation during stim and recording experiments. These amplifiers use the same recording boards as the industry gold standard PZ5 and Subject Interface in our integrated and affordable iCon chassis.



iA32 - neuroscience research amplifier to record precision neurophysiology signals like EEG, EMG, LFPs, MUAs, or Single-Units up to 50 kHz

Research Uses



  • Chronic freely behaving subject recordings
  • Closed Loop Stim
  • Acute recordings
  • Behavioral tasks and Social Behavior
  • fMRI recordings
  • BCI
  • Tuning Curves
  • Any study that uses extracellular neurophysiology recordings

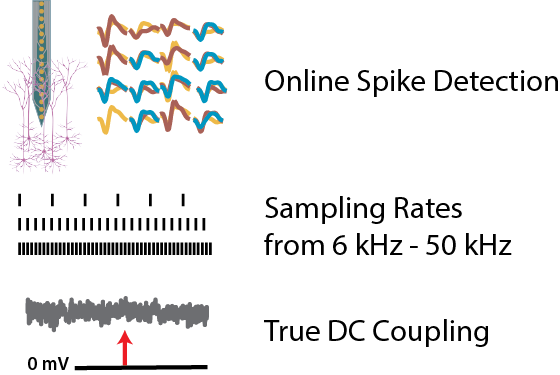

Core Features



  • DC recording function
  • Adjustable referential options (single-ended, dedicated reference, or differential)
  • Large Input range +/- 500 mV input range
  • Low noise floor <2 microvolts RMS
  • Excellent signal resolution (100 nanoVolts)
  • Built-in Impedance Measurement
  • Wall power for 24/7 recording
  • Seamless integration with TDT commutators
  • For a complete list of technical specs please visit the iAn hardware page

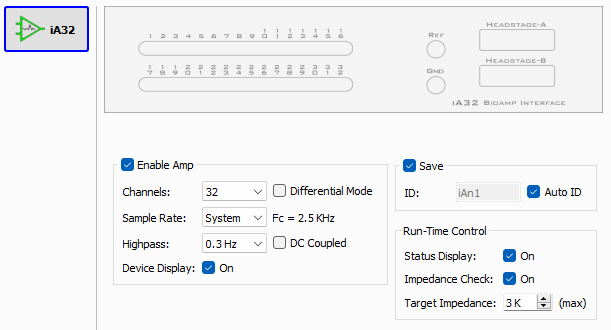

iA16 / iA32 - Synapse Software

Easily configure your amplifier and start recording with a few clicks in our Synapse software.

Synapse provides users with complete control of their real-time recording signals. You can process the data downstream with filters, spike sorting, thresholding, and closed-loop feedback. Synapse’s “all-in-one-place” approach lets you combine simple recording processes with more complicated parallel processing of other signals and hardware to make the exact experiment you need for your research.

For more software details and specs please visit the iAn Synapse Manual.

iA4

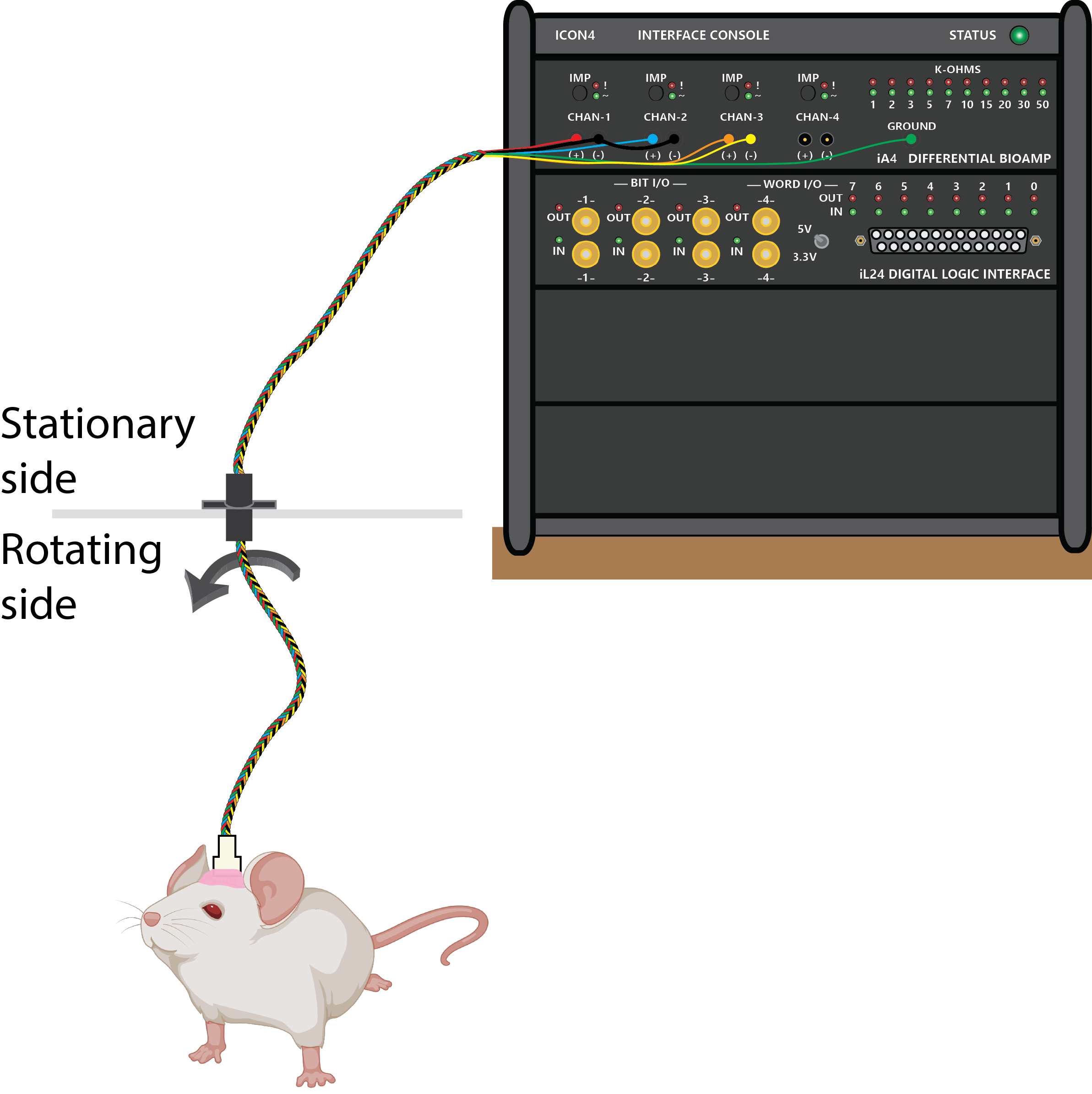

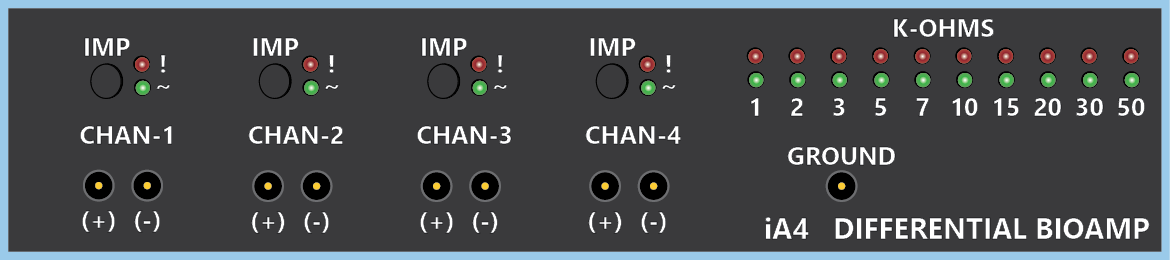

The iA4 is a precision four-channel electrophysiology amplifier iCon module designed for low-impedance neurophysiology recordings such as EEGs, EMGs, EKGs, and evoked potentials. The iA4 uses our incredible 24-bit high-fidelity PZ amplifier digitization circuitry in a true differential setup to provide the lowest noise continuously powered recordings possible. The touch proof connectors on the front panel provide a simplified connection to standard commutators and head caps for an easy out-of-the-box setup for freely-behaving subjects. This amplifier is perfect for your sleep studies, epilepsy research, ABRs, or freely behaving recordings.



iA4 - precision four-channel electrophysiology amplifier for low-impedance neurophysiology recordings such as EEGs, EMGs, EKGs, and evoked potentials. The iA4 is part of TDT's iCon Behavioral Research System

Research Uses

  • Sleep Studies
  • Epilepsy Research
  • Continuous Freely Behaving Recordings
  • Auditory Brainstem Response (ABR)
  • Electroencephalogram (EEG)
  • Electromyogram (EMG)
  • Electrocardiogram (EKG)
  • Electroocculogram (EOG)
  • Evoked Potential Response
  • Check out our iA4 Guide for EEG and EMG recordings!

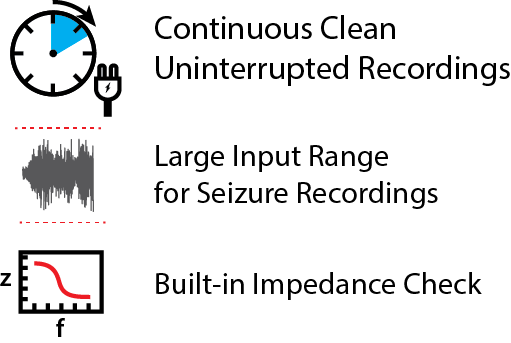

Core Features

  • Continuously record with isolated wall power
  • Large input range of +/- 12.5 mVolts to minimize signal saturation during seizures
  • User-selectable sample rate up to 50 kHz
  • Onboard impedance checking
  • For a complete list of technical specs please visit the iA4 hardware page.

iA4 - Synapse Software

The iA4 is fully integrated into Synapse with features like frequency response controlled via software. Built-in impedance checking supports scanning electrode impedance via the Synapse software or with the push of a button on the device’s front panel.

For more software details and specs please visit the iAn Synapse Manual.
