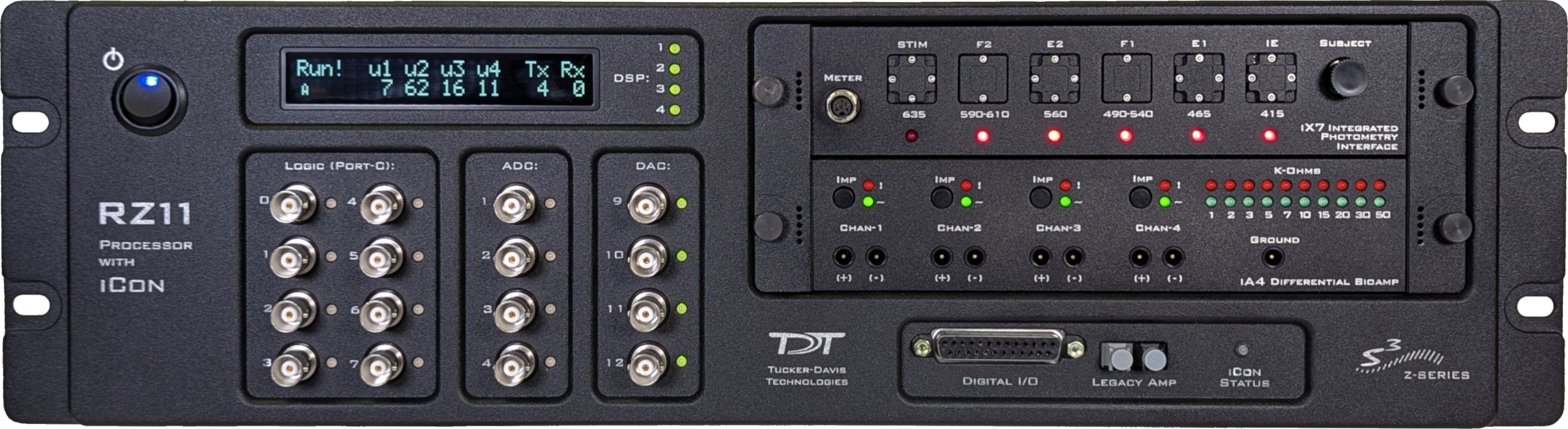

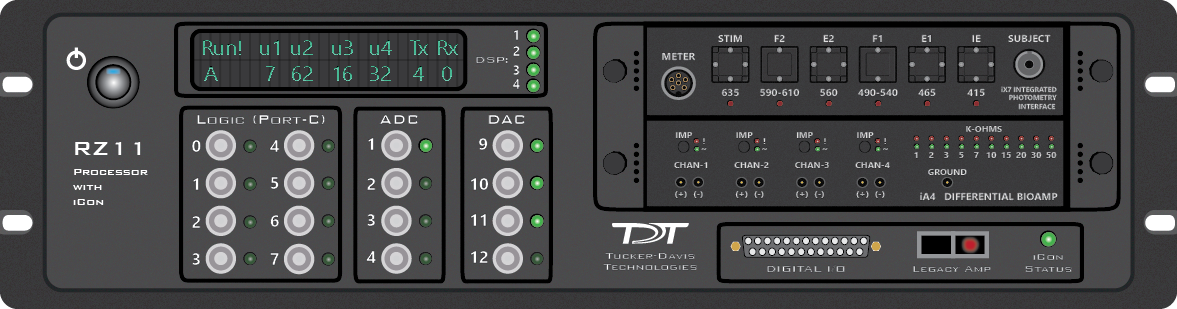

RZ11 – iCon Module Processor

The RZ11 iCon Module Processor is a state-of-the-art device designed for researchers who demand flexibility without excess in their experimental rigs.

This unique RZ real-time processor combines a wide range of digital and analog I/O with our incredible module options from our iCon Platform. Powered by our industry best signal processing cards, the RZ11 is our most expansive offering to date.

Any current RZ user can also look into upgrading their existing processor to an RZ11! Please contact our Sales Team for more details.



Research Uses

Product Specs

Resources

Publications

  • Behavioral Neuroscience
  • Fiber Photometry
  • Electrophysiology
  • Fear Conditioning
  • Forced Choice, Fixed Ratio, Progressive Ratio Tasks
  • Video Tracking
  • Sound Stimulation

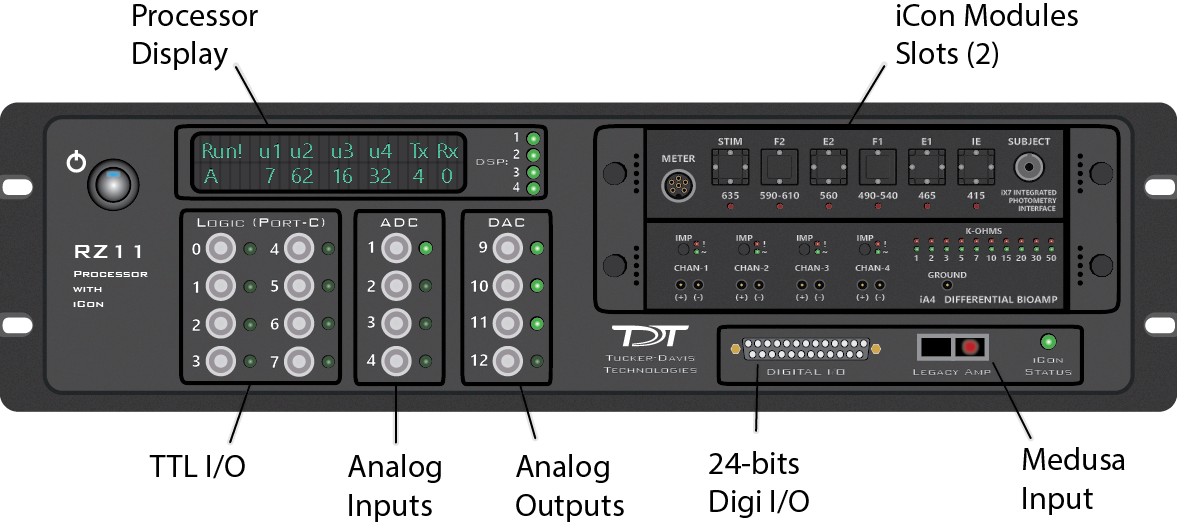

  • Up to 50 kHz sampling rate
  • iCon-2 slot modules
  • 4 Analog inputs/ 4 Analog outputs
  • 24 bits of digital IO (8 bit-addressable, 16 byte-addressable)
  • Medusa input for peripheral amplifiers

TDT systems have been used in more than 10,000 published studies.

Browse all publications →

Published with the RZ11? Send us the DOI and we will add your paper.

How to cite the RZ11

Name the model in your Methods so readers can find the equipment you used, for example:

RZ11 iCon Module Processor with Synapse software (Tucker-Davis Technologies, Alachua, FL, USA)

Request this product

Customizing with iCon Modules

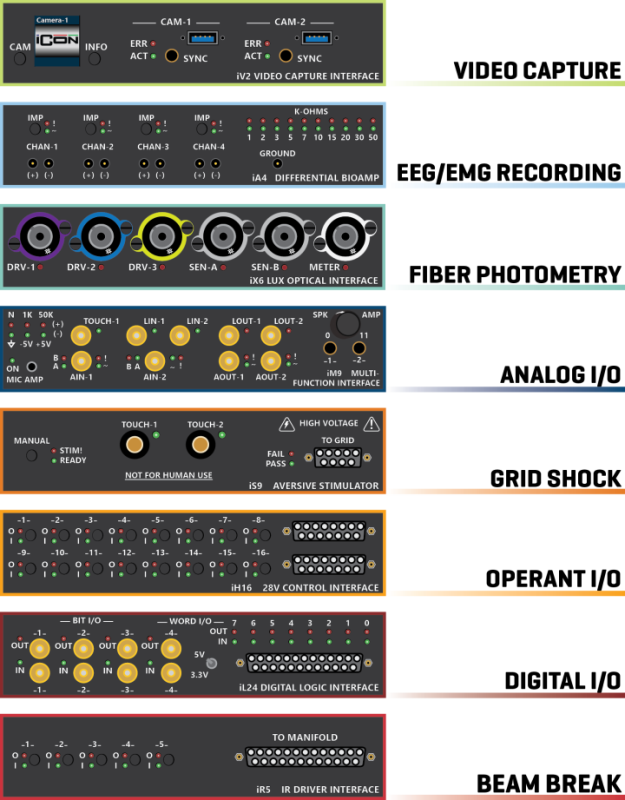

The RZ11 has an iCon2 built into the device. This means that researchers can populate the open slots with any of our over 20+ iCon modules for a fully customized neurophysiology setup.

TDT offers iCon modules for behavioral operant control, fiber photometry, electrophysiology, aversive stimulation, fear conditioning, infrared detection, and much more.

The video below demonstrates how various modules populate the embedded iCon caddie. RZ11 owners can mix-and-match modules in the two available slots on the processor to customize for any research application.

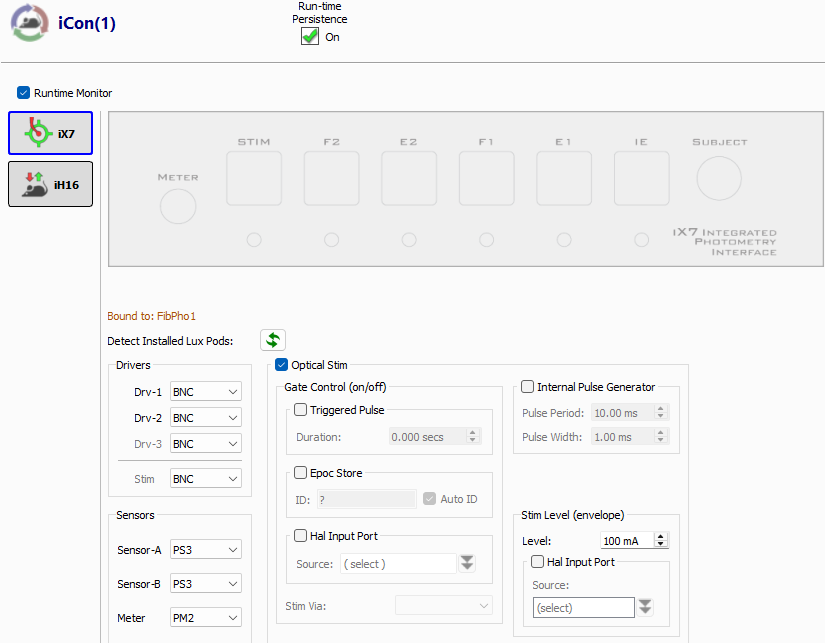

Synapse Software

The RZ11 automatically detects and configures your iCon modules. Setting up experiments for Fiber Photometry, operant behavior, or anything else is very simple – just attach the gizmos you need using our intuitive click-and-drag interface and Synapse will do the rest.

Synapse-Pynapse-Fiber-Photometry_self-administration
