S-BOX Touch-Proof Interface

The S-BOX is a passive signal splitter that connects to the PZ5 amplifier and the Subject Interface Stimulator. The splitter provides easy routing of low impedance signals to the TDT ephys system via touch proof connectors. For use with EEG, ECoG and EMG recordings.

The S-BOX is available in 32-channels or 16-channels.

Research Uses

Resources

Publications

  • Available in 16 and 32 channels
  • EEG, ECoG, & EMG

Knowledge Hub S-BOX User Manual

Note: The TDT S-BOX 32 Channel Splitter is Intended for use with the PZ5 Amplifier

TDT systems have been used in more than 10,000 published studies.

Browse all publications →

Published with the S-BOX Touch-Proof Interface? Send us the DOI and we will add your paper.

How to cite the S-BOX Touch-Proof Interface

Name the model in your Methods so readers can find the equipment you used, for example:

S-BOX Touch-Proof Interface (Tucker-Davis Technologies, Alachua, FL, USA)

Request this product

S-BOX | 32-channels

32-channels of touch proof connectors are available, as well as ground and reference. A single DB37 can also be used for connecting directly to an EEG cap.

Two DB26s directly connect to a PZ5 or SI. Bank letters, as well as channel numbers, are labeled on all the DB26 connectors (i.e. Bank A = Channels 1-16).

S-BOX | 16-channels

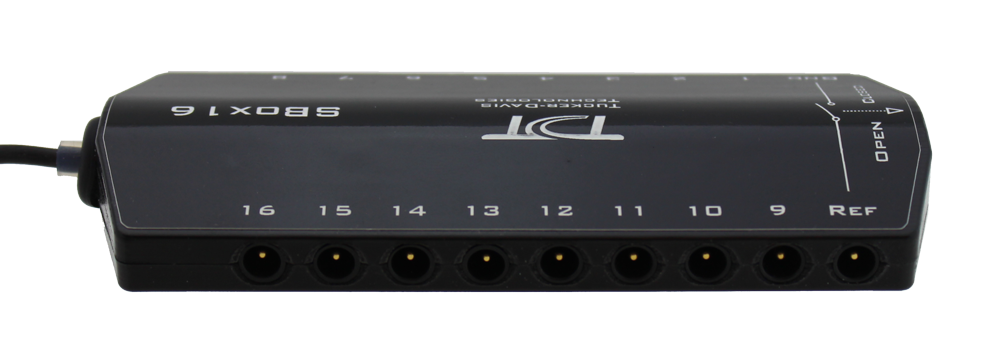

16-channels of touch proof connectors are available, as well as ground and reference. The ground and reference can be tied together by flipping a switch at the base of the S-BOX.

A single DB26 directly connects to a PZ5 or SI.
