Splitters

S-BOX_PZ5 - Amplifier Input Splitter

The S-BOX_PZ5 is a 32-channel passive signal splitter for use with the PZ5 Amplifier or PZA (Subject Interface) Amplifier. The splitter provides a simple and effective means of routing low impedance biological signals to both a TDT acquisition system and a parallel recording system.

Two DB26 connectors provide direct connection to a PZ5 amplifier and a single DB37 provides a parallel output connection. Bank letters as well as channel number ranges are labeled on all the DB26 connectors (i.e. Bank A Channels 1-16).

Important

The S-BOX_PZ5 is NOT FDA approved and is intended for use with the PZ5 Amplifier.

The S-BOX_PZ5 uses standard 1.5 mm safety connectors for electrode input. Front panel numbering of these inputs corresponds to TDT amplifier channels.

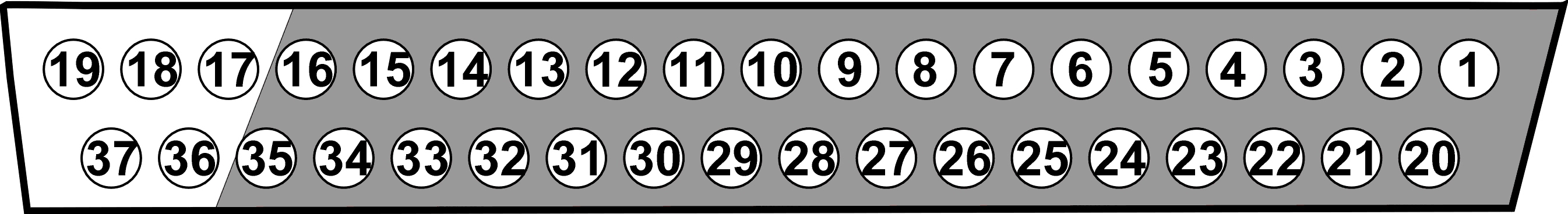

DB37 Pinout

Pin	Name	Description		Pin	Name	Description
1	A1	Analog input channels		20	A2	Analog input channels
2	A3			21	A4
3	A5			22	A6
4	A7			23	A8
5	A9			24	A10
6	A11			25	A12
7	A13			26	A14
8	A15			27	A16
9	A17			28	A18
10	A19			29	A20
11	A21			30	A22
12	A23			31	A24
13	A25			32	A26
14	A27			33	A28
15	A29			34	A30
16	A31			35	A32
17	NA	Not Used		36	NA	Not Used
18	NA			37	REF	Reference
19	GND	Ground

Note

No connections should be made to pins 17, 18, and 36.

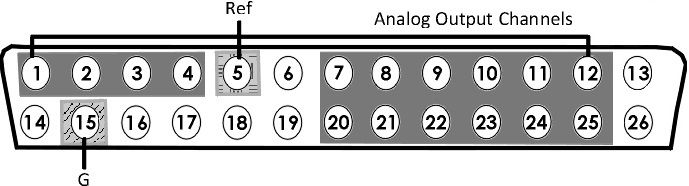

DB26 Pinout

Pin	Name	Description		Pin	Name	Description
1	A1	Analog Input Channels		14	NA	Not Used
2	A2			15	GND	Ground
3	A3			16	GND	Ground
4	A4			17	NA	Not Used
5	Ref	Reference		18	HSD	Headstage Detect
6	HSD	Headstage Detect		19	HSD
7	A5	Analog Input Channels		20	A6	Analog Input Channels
8	A7			21	A8
9	A9			22	A10
10	A11			23	A12
11	A13			24	A14
12	A15			25	A16
13	NA	Not Used		26	NA	Not Used

S-BOX16 - 16 Channel Input Splitter

The S-BOX16 is a 16-channel passive signal splitter for use with the PZ5 Amplifier or PZA (Subject Interface) Amplifier. It has a physical switch to optionally short ground and reference together.

The S-BOX16 uses standard 1.5 mm safety connectors for input from electrodes. Front panel numbering of these inputs corresponds to TDT amplifier channels.

It has the same pinout as the S-BOX_PZ5.

Important

If using with the IZ2 or IZV stimulator, make sure the switch is in the OPEN position.

Important

The S-BOX16 is NOT FDA approved

S-BOX64 - 64 Channel Input Splitter

The SBOX64 is a 64-channel passive signal splitter for use with the PZ5 Amplifier or PZA (Subject Interface) Amplifier. It has a physical switch to optionally short ground and reference together.

The S-BOX64 uses standard 1.5 mm safety connectors for input from electrodes. Front panel numbering of these inputs corresponds to TDT amplifier channels.

Each DB26 has the same pinout as the S-BOX_PZ5.

• Bank A Ch 1-16
• Bank B Ch 17-32
• Bank C Ch 33-48
• Bank D Ch 49-64

All GND pins on Banks A-D are shared, and all Ref pins are shared.

Front and back pinout of S-BOX64

Important

If using with the IZ2 or IZV stimulator, make sure the switch is in the OPEN position.

Important

The S-BOX64 is NOT FDA approved
