Name the model in your Methods so readers can find the equipment you used, for example:
ZIF-Clip® Headstage To NeuroNexus Acute Probes (Tucker-Davis Technologies, Alachua, FL, USA)
| Channels | Part # | Preparations | Probe Connector |
| 64 | ZCA-NN64 | Acute | 40-pin Samtec FOLC high density socket strip x 2 (1.27mm pins) |
| 32 | ZCA-NN32 | Acute | 40-pin Samtec FOLC high density socket strip (1.27mm pins) |
| 16 | ZCA-DIP16 | Acute | 18-pin female DIP socket header (0.5mm pins) |

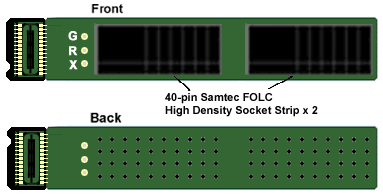

Part Number: ZCA-NN64
This adapter connects a 64-channel acute Samtec MOLC probe (compatible with NeuroNexus) to a 64-channel ZIF-Clip® headstage.
Note: X (Ref) denotes the probe reference and is not connected to the headstage.
Part Number: ZCA-NN32
This adapter connects a 32-channel acute Samtec MOLC probe (compatible with NeuroNexus) to a 32-channel ZIF-Clip® headstage.
Note: X (Ref) denotes the probe reference and is not connected to the headstage.
Part Number: ZCA-DIP16
This adapter allows the user to connect a 16-channel acute probe (such as NeuroNexus) to a 16-channel ZIF-Clip® headstage.
