Crosstraining Your Experiments

RPvdsEx

Utilize Real-time Processor Visual Design Studio (RPvdsEx) for a wide range of applications including simultaneous Single Unit and LFP Data Processing, Spike Fired Averaging, Artifact Rejection, Cross Channel Noise Reduction, Behavioral Control, Complex Stimulus Design and more.

The unique features of RPvdsEx include:

  • One click to compile, load, and run the circuit
  • Zoom and Pan features make it easy to view and move around a page

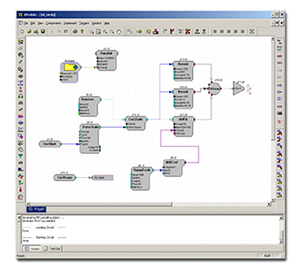

  • Add and link components on a drag-and-drop grid
  • Customize your workspace and toolbars for easy access to commonly used components and design elements
  • Available circuit components are organized into intuitive groups to speed the design process
  • Graphs, parameter watches, and other debugging tools accessible from a toolbar
  • View compilation status, errors, or warnings in a tabbed messages window – select an error in the list to navigate to the problem area of the circuit
  • Pages organize complex circuits and allow you to quickly switch between areas of the circuit or assign individual pages to one or more DSPs on a multi-DSP device

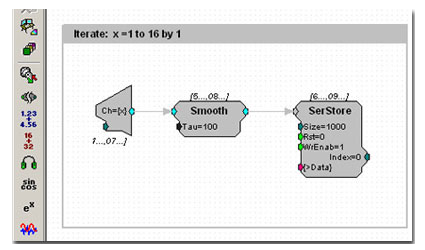

With RPvdsEx, concise error reporting helps you find and fix circuit errors. Additionally, powerful “Macros” feature allows complex circuit details and high-level functions to be condensed into easy-to-use Macro components.
