Commutator does not charge properly

Tech Note: TN0918
Product: AC32, AC64
Version: AC32 < 5000, AC64 < 3000
Date Added: 2013-04-16


Commutator charge life drops significantly, or device no longer charges.

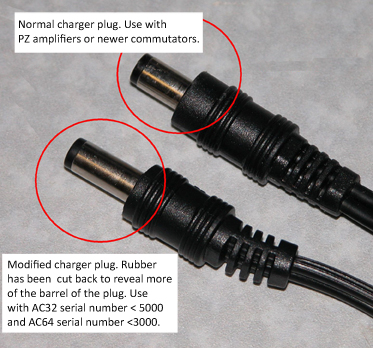

Commutators and battery-powered amplifiers use the same 6 V center pin negative charger. Affected commutators have a deeper power socket, which the normal charger won't reach; they use a charger with a modified extended barrel. Verify you are using the correct charger before contacting TDT for support.
