Unable to use Device Configuration Register for RZ

Tech Note: TN0268
Product: RZ, RPvdsEx
Version: All
Date Added: 2007-10-01

Issue

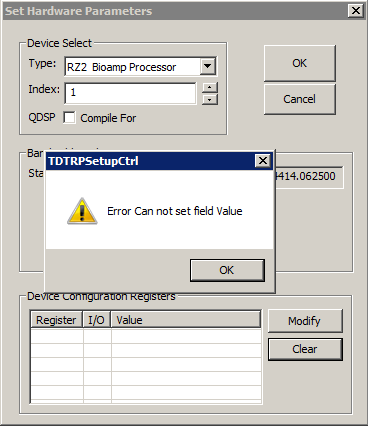

When an RZ Processor is selected in the Set Hardware Parameters dialog box of RPvdsEx, the Device Configuration Registers section of the dialog box expands but is not editable. Clicking the Clear button produces an error message.

Solution

Use the RZn_Control macro to configure digital I/O for your specific RZ processor.
