Recording EEG and EMG with the iA4

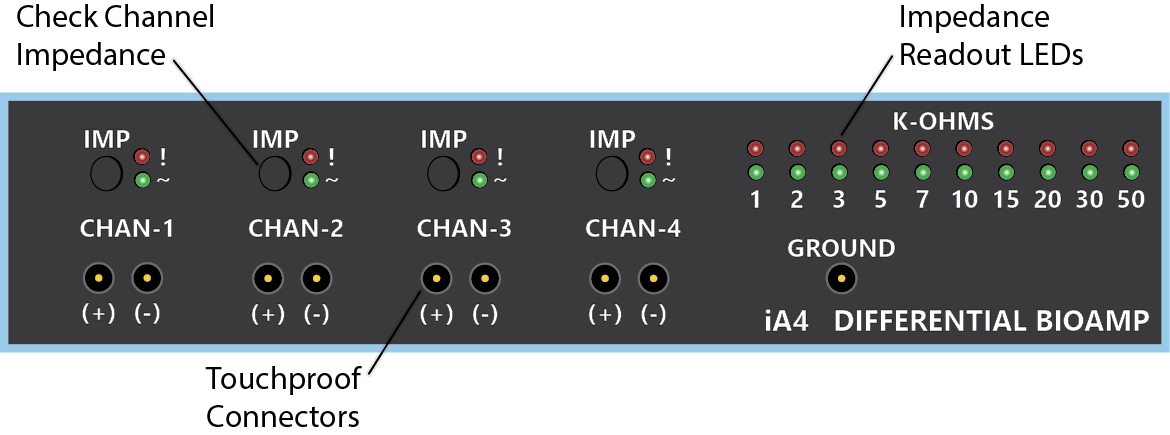

The iA4 is a low-cost TDT differential bio amplifier designed specifically for recording low impedance signals like EEGs (electroencephalograms) and EMGs (electromyography). The iA4 is targeted to sleep and epilepsy researchers who need an easy 'plug-and-play' solution for challenging chronic recordings of subjects. The iA4 runs off continuous wall power and has male touch-proof connector inputs for easy connections to commutators.
This guide is intended to help you, as a current or prospective TDT user, learn more about what the iA4 can accomplish in your electrophysiology research. You will see an overview of the iA4, the iCon platform that the iA4 is a part of, and also see a practical example of electrode and wire connections going from a subject to the iA4. While this guide focuses on EEG and EMG, the iA4 can record any type of low impedance signal such as EKG, EOG, evoked potentials, and much more. Keep that in mind as you continue thinking about your research needs.

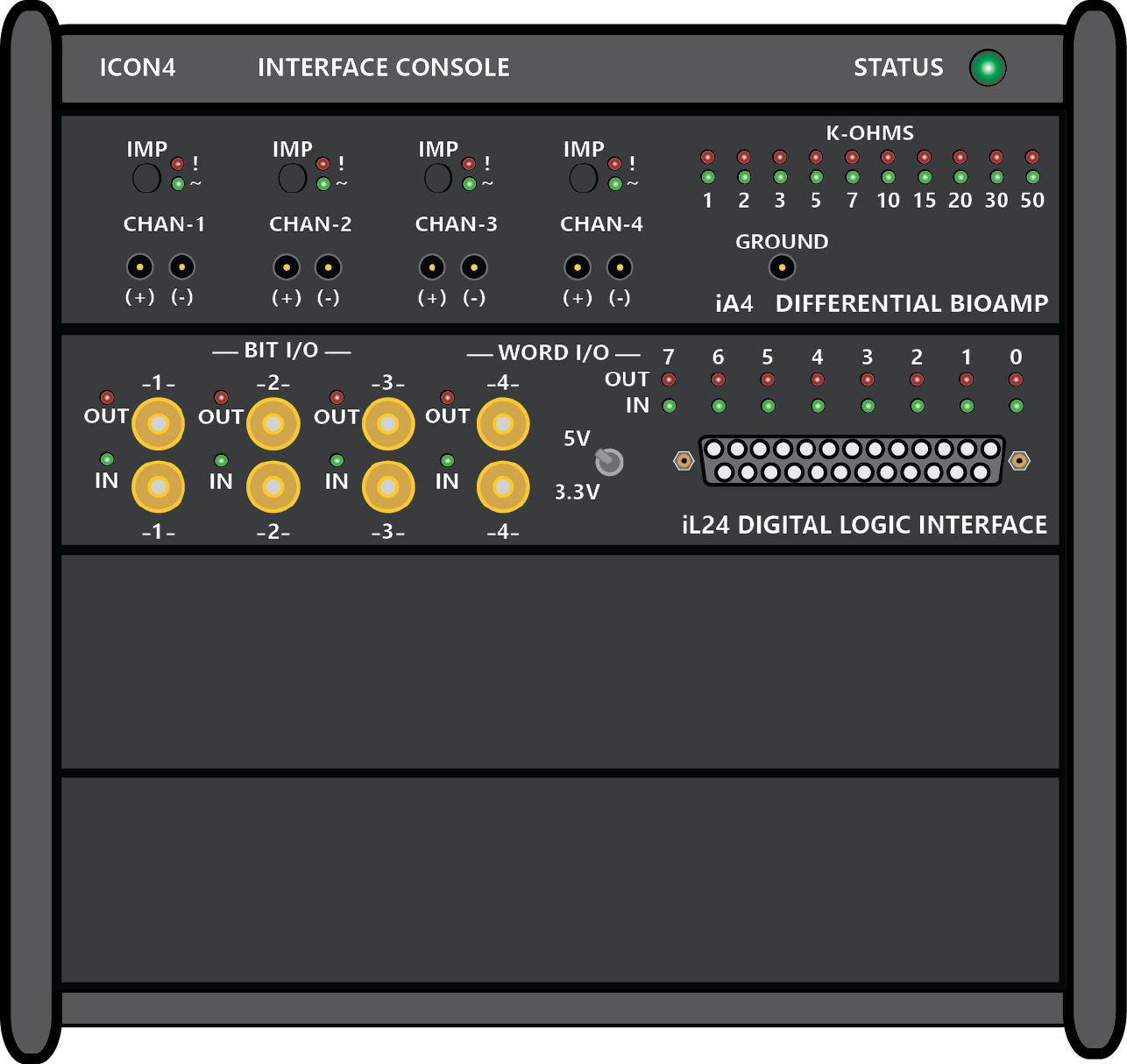

The iA4 is part of the iCon platform and can be placed into any iCon caddie to add electrophysiology recording capabilities to your studies. Below is an example iConZ-4 with an iA4 and iL24. See the iCon Modules section for an overview of the iCon Platform
 |
Every module in the iCon is set up and controlled in our Synapse software. Users find the simple drag-and-drop workflow intuitive and easy for quickly starting new or modifying experimental recording protocols. Additionally, all data is synchronized on the same clock so there is no post-hoc alignment necessary.
