RZ Processor Digital I/O

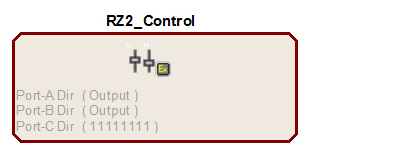

The RZ Processors include 24 bits of programmable digital I/O, two word addressable bytes and eight bit addressible bits. Direction of bytes and bits (in/out) can be set in the corresponding device specific control macro for the device, RZ2_Control, RZ5_Control, RZ5D_Control, RZ6_Control. See below for components/bitmasks to address bytes/bits.

Byte Addressable Digital I/O

Bitmasks to use for accessing byte addressable digital I/O with the WordIn, WordOut components.

Port	Byte/Bits	Bitmask (Integer)
Port A	Byte A (bits 0 - 7)	M = 255
Port B	Byte B (bits 0 - 7)	M = 65280

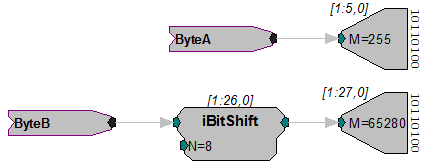

Reading Bytes A and B

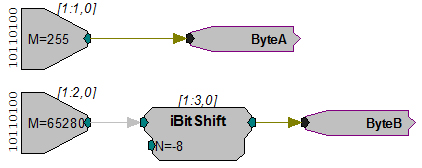

Writing to Bytes A and B

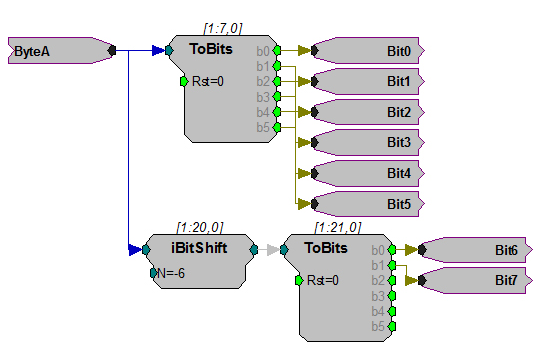

Reading Bits from a Byte

Bit Addressable Digital I/O

Bitmasks to use for accessing bit addressable digital I/O with the BitIn, BitOut components.

Bit	Bitmask (Integer)
0	M = 1
1	M = 2
2	M = 4
3	M = 8
4	M = 16
5	M = 32
6	M = 64
7	M = 128

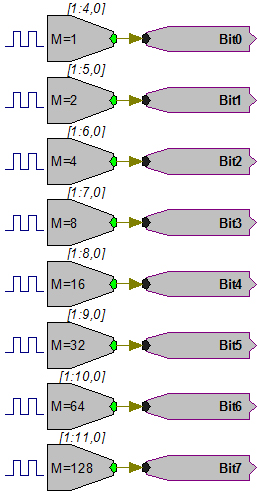

Port C As Inputs

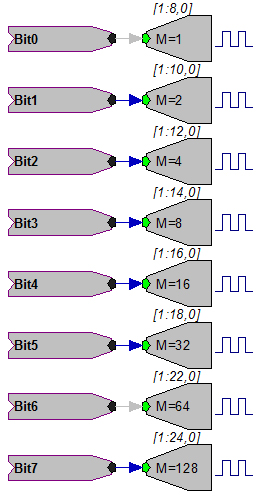

Port C As Outputs
